3KW/5KWH并離網儲能一體機（NESS3048S）
Hybrid Energy Storage System
系統組成（System composition）

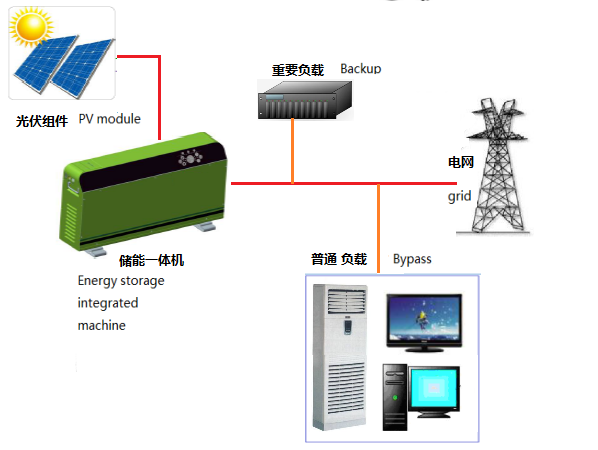

3KW/5KWH并離網儲能一體機主要包括輸出功率3KW的逆變器設備，容量5KWH的儲能電池及智能監測控制系統。儲能一體機可以與光伏發電系統、城市電網聯網運行，保證為客戶不間斷提供電源。系統拓?fù)淙缦聢D所示。
3KW/5KWH Hybrid Energy Storage System integrated machine mainly includes one inverter equipment whose output power is 3KW, one storage battery whose capacity is 5KWH and intelligent monitoring and control system. The energy storage integrated machine can be connected with the photovoltaic power generation system and the urban power grid to ensure uninterrupted supply of power for the customers. The system topology is shown below。
工作模式(Working mode)
● 后備UPS模式：城市電網在為負載供電的同時也為電池充電進行儲能，當電網斷電時，儲能一體機作為后備電源為用戶供電。
Backup UPS mode: City power grid not only supplies power to the load , but also charges storage battery. If the city power grid is disconnected, the energy storage machine will be a backup power .
● 自發自用模式：儲能一體機工作在并網狀態，光伏發電在為負載提供電能的同時多余的電能輸送到電網，不足部分由電網補充。
Spontaneous use mode: When the energy storage integrated machine connects with the city power grid, on the one hand, photovoltaic power generation supplies power to the load. At the same time, excess power is transported to the city power grid, inadequate part of the grid supplement. On the other hand, when the photovoltaic power generation can not supply enough power, the city power will supplement.
● 混合模式：儲能一體機還可以與發電機一起構筑光伏油電混合系統。
Hybrid mode: the energy storage integrated machine can also be used to construct photovoltaic oil and electricity hybrid system with the generator. It can be configured flexibly according to customer requirements.
系統特點(System characteristics)
◆ 內置磷酸鐵鋰電池組，效率高、長壽命、體積小。
built-in lithium iron phosphate battery, high efficiency, long life, small volume.
◆ 雙重電池欠壓、過壓保護功能。
the dual battery under-voltage and over-voltage protection function.
◆ 內置主動均衡電池管理系統，具有維持蓄電池單體電池電壓平衡，欠壓、過壓、高溫、低溫、過流保護等功能。
built-in active equalization of battery management system, with the function of maintaining the balance of the voltage of the battery，under-voltage protection，over-voltage protection, high temperature protection , low temperature protection, and overcurrent protection.
◆ 具有TUV、CE等國際認證證書。
TUV, CE and other international certification.
◆ 具有wifi通訊功能，通過安裝的APP軟件可以讀取設備的相關信息。
WiFi communication, get the relevant information of the equipment through the APP
◆ 純正弦波輸出、諧波小、波形失真率小。
sine wave output, low harmonics, small waveform distortion rate.

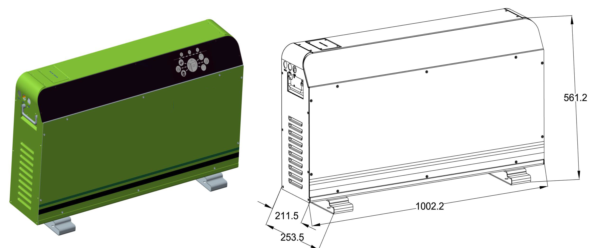

外形和尺寸（Shape and size）
